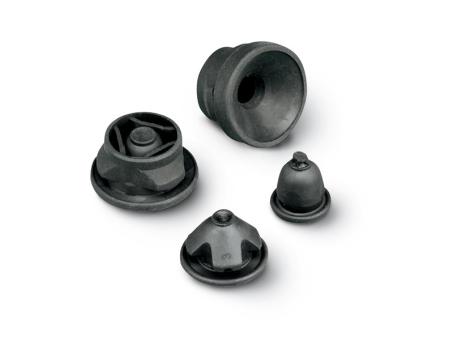

SNAPLOC® Coupling

for plate fastening - High temperature applications
Installation method: For plate fastening | Product group: Elements
SNAPLOC® Coupling
Ball diameter (D)
7
8
10
Depth (L1)
10.5
11
Hardness
33 Shore D
50 Shore A
60 Shore A
65 Shore A
70 Shore A
Material thickness (L2)
1 - 2
2 - 3
2.0 - 2.5
2.5 - 3.2
3.3
Diameter (d2)
12.4
16.5
18.5
21.5
22.5
Packaging unit (pcs.)
2000
2200
2500
4000
5000
10000
For further information please contact us.
Coupling | Plug-in connection | Plate fastening | Plastic or silicone component | Installation in plates | Various Shore hardnesses | High temperature requirements | Decoupling
Installation method:
For plate fastening
Product type:
Vibration and noise‑decoupling fastening systems
Product group:
Elements
RoHS conformal:
