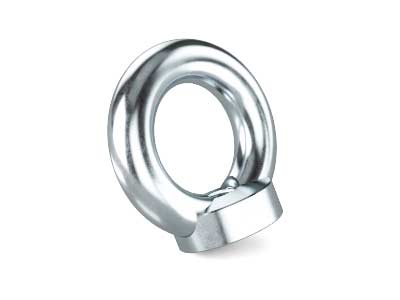

DIN 582

Eye nuts
Material: Steel C 15E | Surface: zinc-plated

Diameter (d)

Packingunit

Reset selection

For further information please contact us.

Item no.: 582/NC15VZ10

Item no.: 582/NC15VZ10

Read on Hide

Clamping range (e min - e max)	9,50 – 10,90
Cr(VI) Note	Cr(VI)-free
d2 max.	25,9
d2 min.	24,5
d3	45
d3 max.	46,1
d3 min.	44,5
d4	25
Diameter (d)	M10
Diameter (d2)	25
e	10
e max.	10,9
e min.	9,5
Flange/washer	without flange
h	45
h max.	46,1
h min.	44,5
Installation method	Assembly by hand
k	10
k max.	10,9
k min.	9,5
m	12
m max.	12,9
m min.	11,5
Material	Steel
Material version	C 15E
Pitch (P)	1,5
r ≃	4
Risk hydrogen embrittlement
RoHS conformal
Surface	zinc-plated
Thread type	Metric thread

All technical data refer to the measure mm

You can download CAD-files from our catalog on partcommunity: To Böllhoff partcommunity

Title	Language	Version	File
Data sheet: Technical information and dimensions of the product	English	02/2023	125.97 KB / PDF
Böllhoff bulletin: Changeover to Cr6+-free protective zinc layers for fasteners	English	1622/15.02	894.98 KB / PDF
Fastening and assembly technology: Products and services	English	1180/21-V1-EN (WBH)	8.79 MB / PDF
