HELICOIL® Plus installation mandrels with depth stop

for processing of HELICOIL® Plus Free Running with installation tools types: B-S 206 | E-S 206 | E-S 410 | P-S 412
Thread type: UNC | Product group: Accessories | Product type: 4160.23
HELICOIL® Plus installation mandrels with depth stop
Diameter (d)
UNC 2-56
UNC 4-40
UNC 5-40
UNC 6-32
UNC 8-32
UNC 10-24
Pitch (P)
0,43
0,63
0,79
1,05
Design
HELICOIL® Plus Free Running
HELICOIL® Plus Free Running & Screwlock
HELICOIL® Plus Screwlock
Packaging unit (pcs.)
1
For further information please contact us.

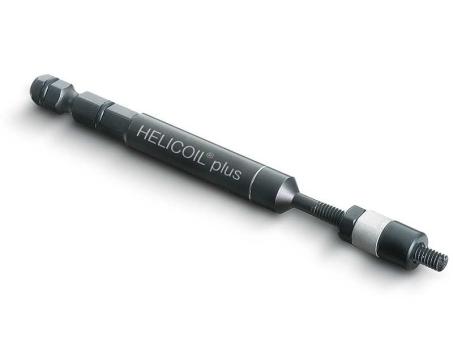

Type 4160.23 installation mandrel with depth stop to process HELICOIL® Plus coil thread inserts with UNC thread.

Suited for:
• B-S 206 cordless installation tool
• E-S 206 and E-S 410 electrical installation tools
• P-S 412 pneumatic installation tool

Properties:
• With external hexagon as per DIN 3126 – E 6.3/DIN ISO 1173

Note:
These installation mandrels can also be used as manual installation mandrels.

HELICOIL® Plus Screwlock installation mandrels are marked with a ring groove on the guide shaft. HELICOIL® Plus Free Running installation mandrels have a smooth guide shaft.
Thread type:
UNC
Product type:
Installation mandrel
Product group:
Accessories
Product type:
4160.23
